Μηχανή κατασκευής παντελονιού για μωρά

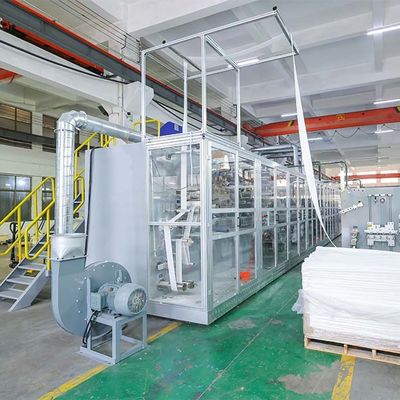

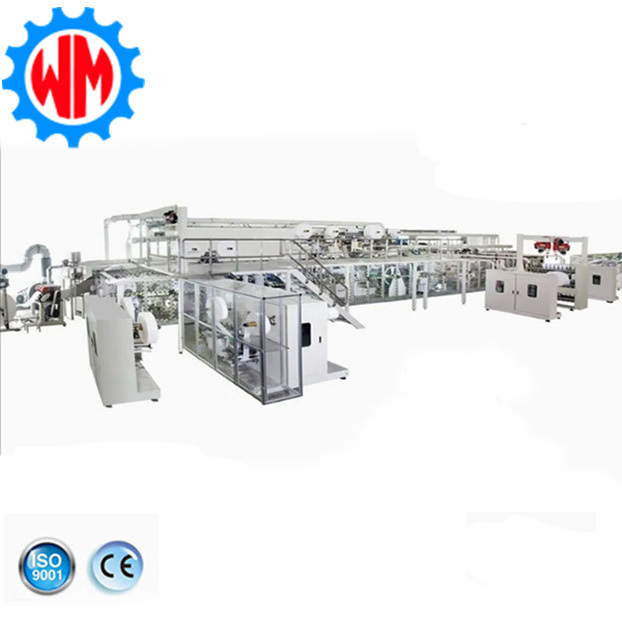

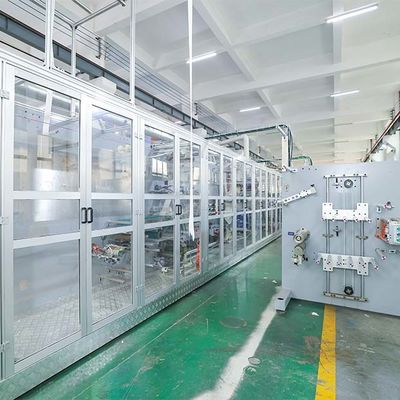

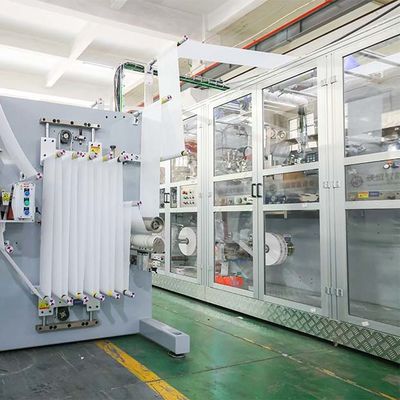

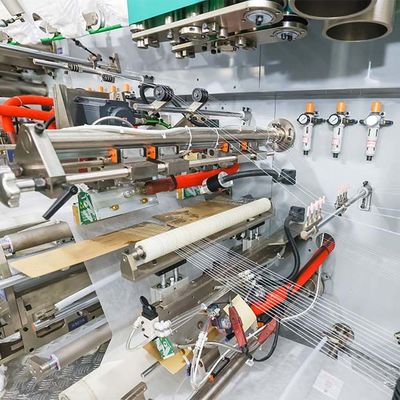

High compatibility Baby Training Pants Production Line Low operational Risk

Όλες οι κατηγορίες

Μηχανή κατασκευής πάνες για μωρά

Μηχανή κατασκευής πάνες για ενήλικες

υγειονομική πετσέτα που κατασκευάζει τη μηχανή

Underpad που κατασκευάζει τη μηχανή

Μηχανή κατασκευής παντελονιού για μωρά

Μηχανή επένδυσης εσώρουχων

Μας ελάτε σε επαφή με

Mrs. Jessie

jessie@wm-machinery.com

18859442931

Επικοινωνήστε τώρα

High compatibility Baby Training Pants Production Line Low operational Risk

Ονομασία μάρκας:	Womeng
Αριθμός μοντέλου:	WM-STP05
MOQ:	1
τιμή:	$500,000.00-$800,000.00
Πληροφορίες συσκευασίας:	Ξύλινό κουτί
Όροι πληρωμής:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Λεπτομέρειες

Περιγραφή προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Fujian, Κίνα

Πιστοποίηση:

Σύστημα ελέγχου:

Σύστημα ελέγχου PLC

Εγγύηση:

1 έτος

Κατάσταση:

Λειτουργικό σύστημα:

Οθόνη αφής

Χρώμα:

Λευκό (Προσαρμοσμένο σύμφωνα με τους πελάτες)

Εφαρμογή:

Παραγωγή παντελονιών για την προπόνηση μωρών

Πρώτη ύλη:

Μη υφασμένα υφάσματα, ταινία SAP, PE

Σύστημα συσκευασίας:

Συσκευή και σφράγιση

Μέγεθος:

Ευκανόνιστος

Λειτουργία:

Αυτοματοποιημένη κοπή, διπλώση και σφράγιση

Ικανότητα:

500-800 κομμάτια/λεπτο

Δυνατότητα προσφοράς:

12 σύνολα/έτος

Επισημαίνω:

baby training pants production line

low risk baby pants machine

high compatibility diaper making equipment

Περιγραφή προϊόντος

Product Info

Product size	35m6m3m(for reference only)
Product structure	Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system	PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system	Semi Servo Drive, timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system	Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B shaft active unwinding by inverter motor.
Safety system	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system	according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system	Materials corrective system: Adopt international famous brand deviation correction system
Power	380V, 50HZ three phase five wire
Machine Capacity	230KW (Excluding glue machine and air compressor)
Bleed pressure	0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight	100 Tons approximately

High compatibility Baby Training Pants Production Line Low operational Risk 0

High compatibility Baby Training Pants Production Line Low operational Risk 1

High compatibility Baby Training Pants Production Line Low operational Risk 2

High compatibility Baby Training Pants Production Line Low operational Risk 3

High compatibility Baby Training Pants Production Line Low operational Risk 4

High compatibility Baby Training Pants Production Line Low operational Risk 5

High compatibility Baby Training Pants Production Line Low operational Risk 6

High compatibility Baby Training Pants Production Line Low operational Risk 7

High compatibility Baby Training Pants Production Line Low operational Risk 8

High compatibility Baby Training Pants Production Line Low operational Risk 9

High compatibility Baby Training Pants Production Line Low operational Risk 10

High compatibility Baby Training Pants Production Line Low operational Risk 11

High compatibility Baby Training Pants Production Line Low operational Risk 12

High compatibility Baby Training Pants Production Line Low operational Risk 13

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com

Strengthen production stability and reduce operational risks

Full servo control ensures product consistency:

Relying on the electronic shaft synchronization technology of the full servo system, the parameter errors of each process on the production line (fabric conveying, elastic waist fitting, core body positioning, cutting) can be controlled within ±0.3mm, ensuring that the size, elasticity and absorption performance of each piece of pull-up pants are highly uniform, avoiding quality fluctuations caused by differences in manual operation. It is especially suitable for chain baby and maternal stores and medical purchase orders with high requirements for product standardization, helping buyers stably obtain long-term cooperation opportunities.

Strong ability to handle unexpected situations:

Equipped with a power-off memory function, it can automatically restore previous production parameters after a brief power outage and restart, avoiding batch scrapping caused by power fluctuations. Key parts are equipped with fault early warning devices. When problems such as fabric deviation or core material shortage occur, the machine will immediately stop and an alarm will be issued to reduce the generation of waste. In response to the unstable batches of raw materials in some areas, the servo system can adjust the conveying speed and pressure to accommodate minor quality differences of raw materials (such as ±0.1mm thickness deviation of non-woven fabric), ensuring the continuity of production.
